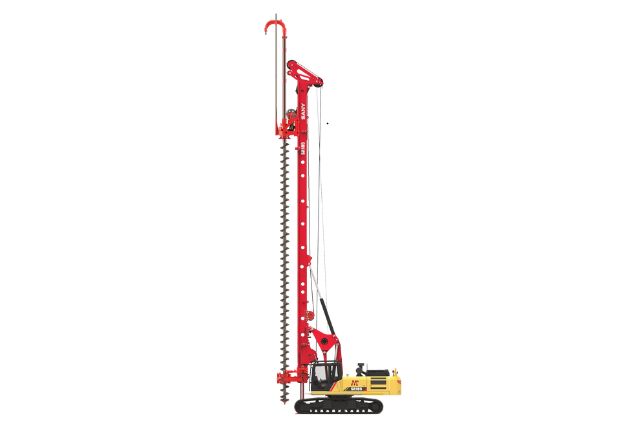

SANY SR185-MIII Rotary Drilling Rig – 2025 Model, Ready to Work!

Features
Strong, Compliant Engine Design
Built in collaboration with top engine manufacturers, this system meets Tier III/IV standards and provides dependable, long-lasting power with low fuel usage.
Full Stroke for Challenging Ground Layers
A 15-meter stroke gives the crowd system speed and power, making it ideal for operations in filled or coarse terrains.
Operator-Friendly Lock Display
Real-time visual tracking of the Kelly bar’s locking location improves safety and minimizes the risk of mechanical failure.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
