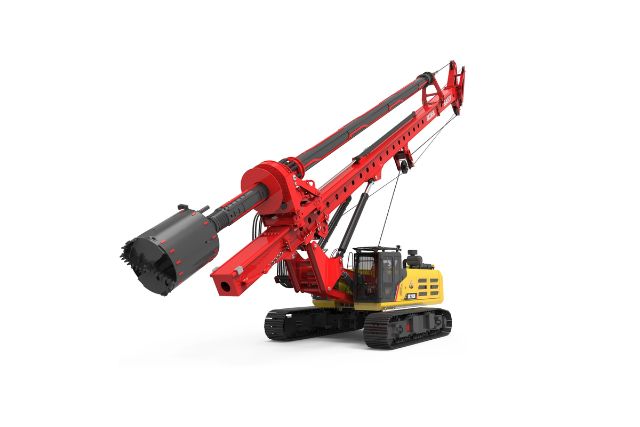

Sany 2025 SR285R-C10 Rotary Drilling Rig – Powerful and Efficient

Features
Efficient and Adaptable
Commonly used in civil engineering for deep and small-diameter boreholes, delivering fast hoist speeds and precise vertical drilling for enhanced efficiency.
Specialized Chassis Design
Features a telescopic wide chassis and large roller slewing bearing for superior stability during deep drilling operations.
Energy-Saving Engine
Equipped with an imported EFI engine that optimizes power distribution in real time, offering quick response and fuel efficiency.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~24rpm
Rated Output Torque: 285kN·m
Pile
Max. Pile Diameter: 2300mm
Max. Pile Depth: 94/61m
Crowd System
Crowd Force: 260kN
Stroke: 6000mm
Line Pull: 335kN
Overall Machine
Overall Height: 25425mm
Operating Weight: 100T
Transport Width: 3490mm
Transport Height: 3690mm
Main Winch
Lifting Capacity: 330kN
Max. Line Speed: 72m/min
Rope Diameter: 36mm

Price: AED 3328000
Request for quote: +971525384269
