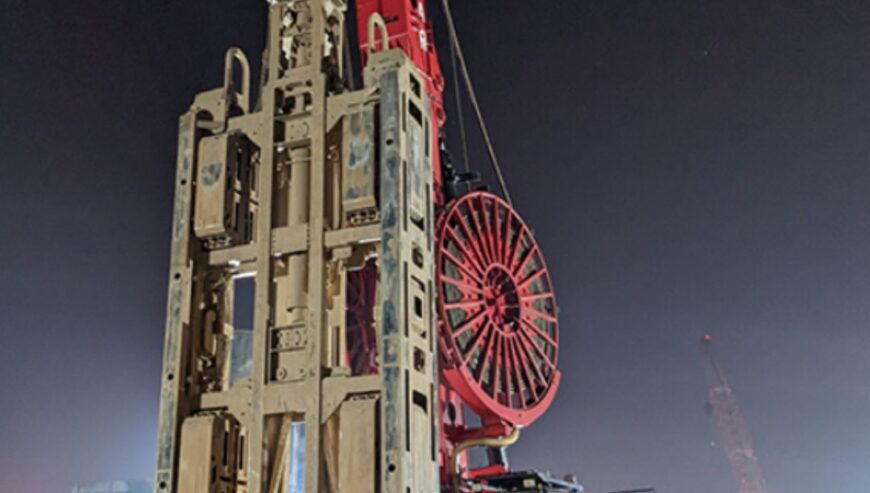

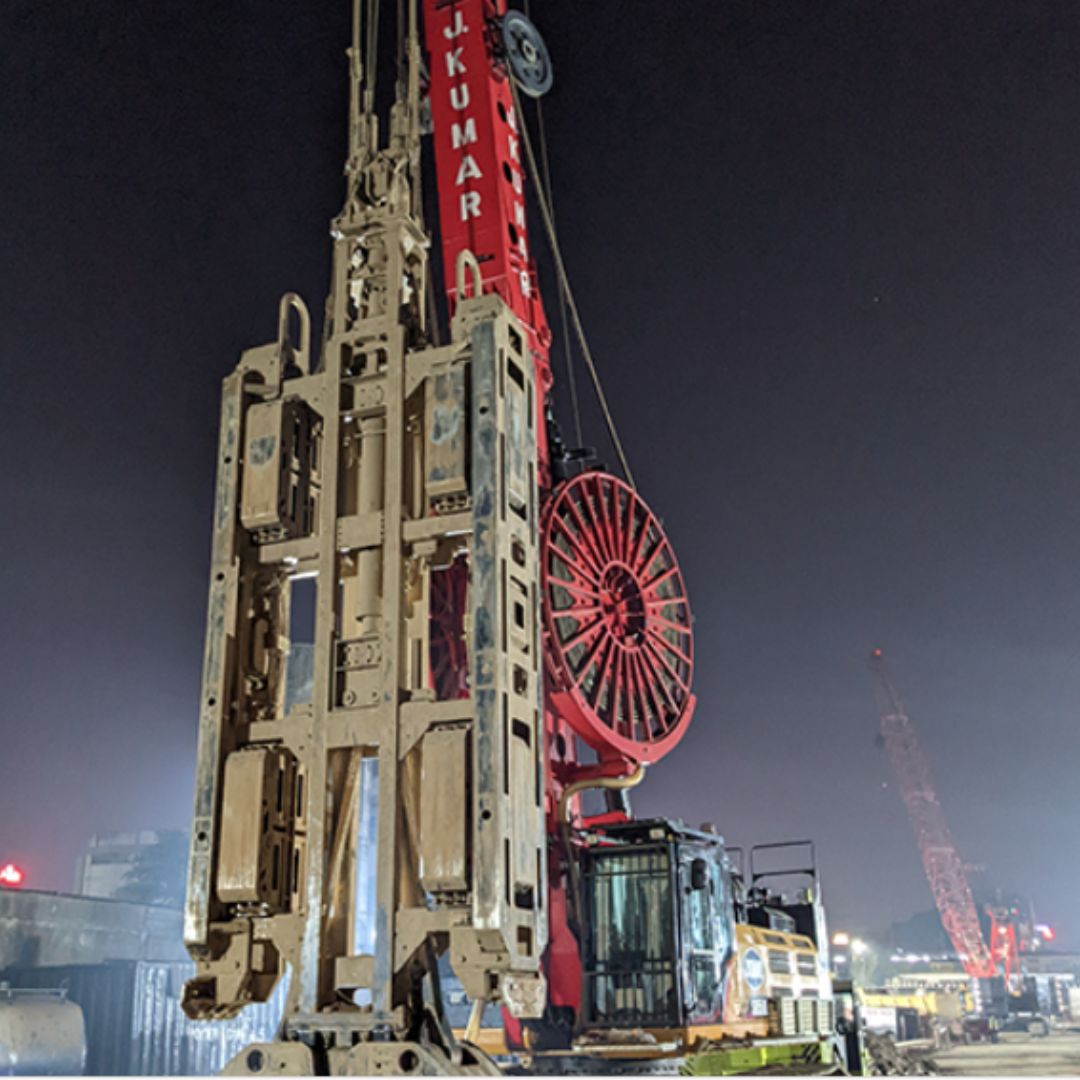

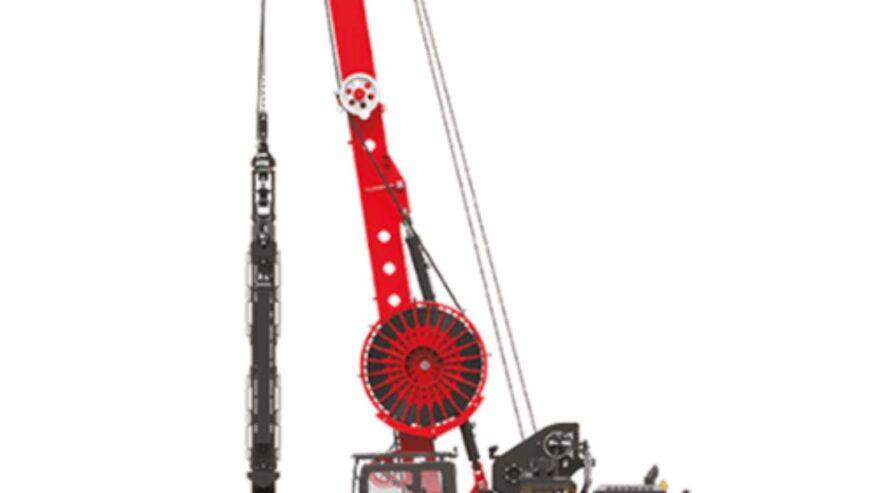

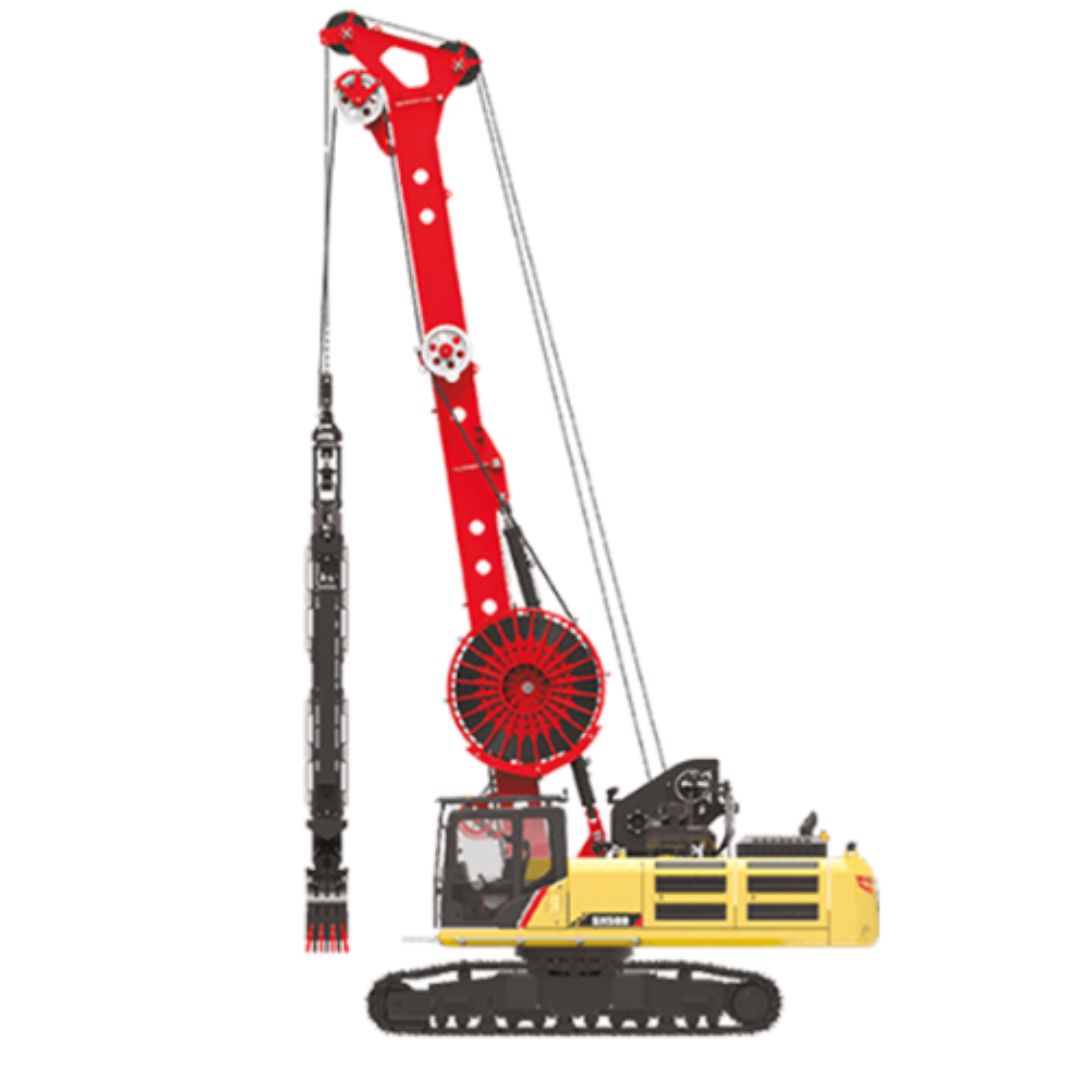

SANY 2025 SR235-S-DW Kelly Guided Grab Rig – For Sale, Built for Tough Jobsites

The Sany 2025 SR235-S-DW Kelly Guided Grab is designed to enhance foundation drilling accuracy through its advanced grab guidance system. This technology stabilizes tool movement, reducing wear and increasing safety. Its powerful hydraulic components deliver smooth and consistent grab force for demanding drilling jobs. Built for rugged terrain and complex ground conditions, it performs reliably day after day. Operator-friendly controls improve efficiency and reduce fatigue. The SR235-S-DW stands out for performance and reliability.

Parameters
Main Chassis
Base Engine: 6UZ1
Engine Power: 257/2000kW/rpm
Emission Regulation: China Stage III
Slot
Groove Width: 500-1200mm
Groove Depth: 35m
Overall Machine
Overall Height: 22870mm
Operating Weight: 83T
Transport Width: 3540mm
Transport Height: 3660mm
Working Equipment
Max. Closing Force: 128T
Weight: 2.5-9T
Open & Close Bucket Time: 5/8S
Main Winch
Lifting Capacity: 235kN
Max. Line Speed: 32m/min
Wire Rope Diameter: 70mm

Price: AED 2201000
Request for quote: +971525384269
