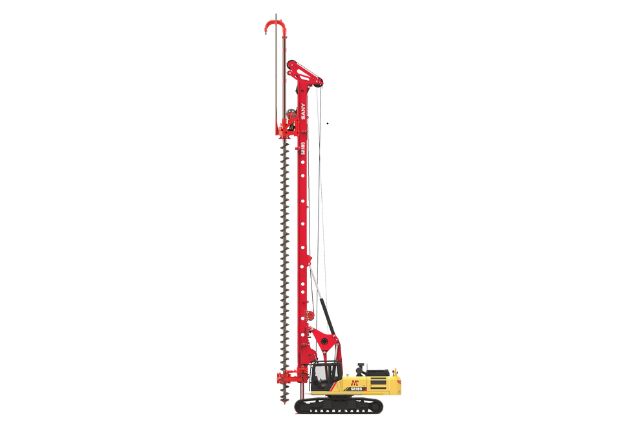

Sany 2025 SR185-MIII Rotary Drilling Rig – Heavy-Duty Drilling Solution For Sale

Features
Clean Power with Strong Output
Thanks to collaboration with industry leaders, the engine complies with the latest emission standards while delivering dependable performance and reduced fuel use.
15-Meter Stroke for Heavy-Duty Drilling
Its long-stroke crowd system supports quick, forceful motions, ideal for deep casing and operations in complex geological conditions.
Live Lock Display for Kelly Bar
Real-time display of the interlocking mechanism’s position ensures safe operation and minimizes accidental mechanical stress.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
