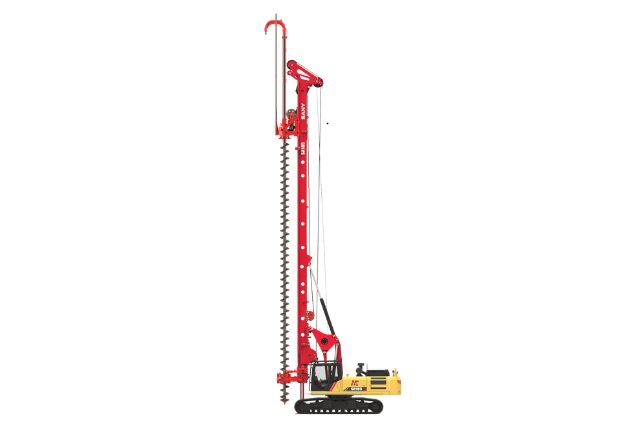

Sany 2025 SR185-MIII Rotary Drilling Rig Available Now – Excellent Condition

Features
Reliable Engine with Low Fuel Usage
Co-developed with globally renowned suppliers, the engine meets Tier III and IV standards, offering consistent, long-lasting power and optimized fuel consumption.
15m Full-Stroke for Deep Drilling
Designed with an extended 15-meter stroke, the system supports fast and efficient crowd and lift operations, especially effective in loose or layered ground.
Kelly Bar Lock Visibility
Operators can monitor the lock mechanism’s position in real time, helping prevent improper operations and equipment damage.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
