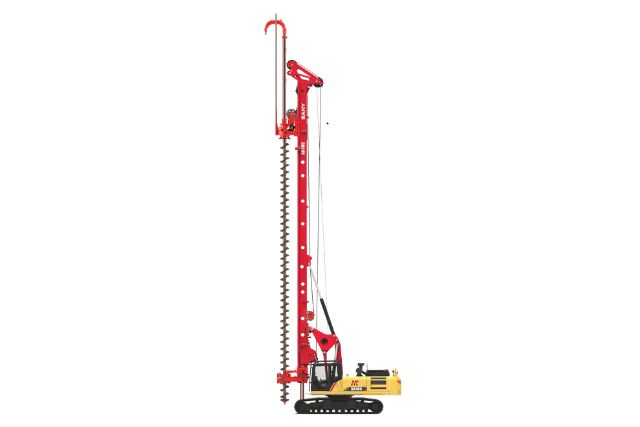

New Sany 2025 SR185-MIII Rotary Drilling Rig For Sale – Ready to Work

Features
Advanced Engine with Lower Emissions
Built to meet international environmental standards, the engine delivers high performance with fuel-saving technology and reliable output under heavy load.
Full-Stroke System for Maximum Depth
Featuring a 15m stroke, the system enables fast crowding and pulling, particularly suitable for deep foundation work in reclaimed or unstable soil.
Accurate Kelly Lock Indicator
The system displays the position of the locking device in real time, preventing misuse and potential damage to the Kelly bar.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
