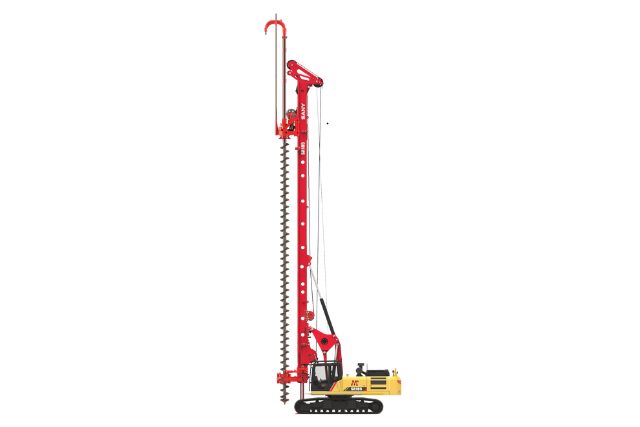

Heavy-Duty SANY 2025 SR185-MIII Rotary Drilling Rig Available Now

Features
Power That Meets Global Emission Standards
The engine, created with leading partners, ensures strong, stable performance while complying with Tier III/IV emission regulations and maintaining fuel efficiency.
Long Stroke System for Demanding Sites
With its 15-meter reach, the crowd system performs rapid push and pull actions, ideal for long casing installation in difficult geological settings.
Real-Time Kelly Bar Feedback
Live monitoring of the lock mechanism enhances accuracy during drilling and prevents accidental misuse.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
