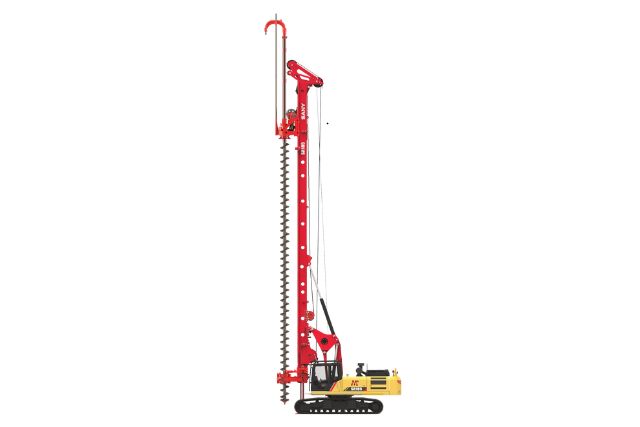

Buy Sany 2025 SR185-MIII Rotary Drilling Rig – High Performance & Durable

Features
Reliable Engine for Heavy-Duty Jobs
The engine, developed with international leaders, offers consistent output that meets Tier IV and III regulations while minimizing fuel consumption.
Extended Stroke for Deep Drilling Efficiency
Designed with a 15-meter crowd stroke, it enables high-speed crowding and retraction, perfect for complex casing operations in unstable soils.
Kelly Bar Lock Position System
Displays real-time lock positioning to assist operators in avoiding accidental damage to the interlocking Kelly bar.

Parameters
Standard Mode
Crowd Force: 180kN
Stroke: 14300mm
Overall Height: 21040mm
Max. Pile Diameter: 1600mm
Max. Pile Depth: 59/47m
Operating Weight: 63T
Line Pull: 180kN
Rated Speed: 5~34rpm
Rated Output Torque: 190kN·m
Main Chassis
Base Engine: ISUZU 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Overall Machine
Transport Width: 3215mm
Transport Height: 3495mm
Main Winch
Lifting Capacity: 185kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm

Price: AED 1925000
Request for quote: +971525384269
